NEXT GENERATION BIPV - CSW-Color

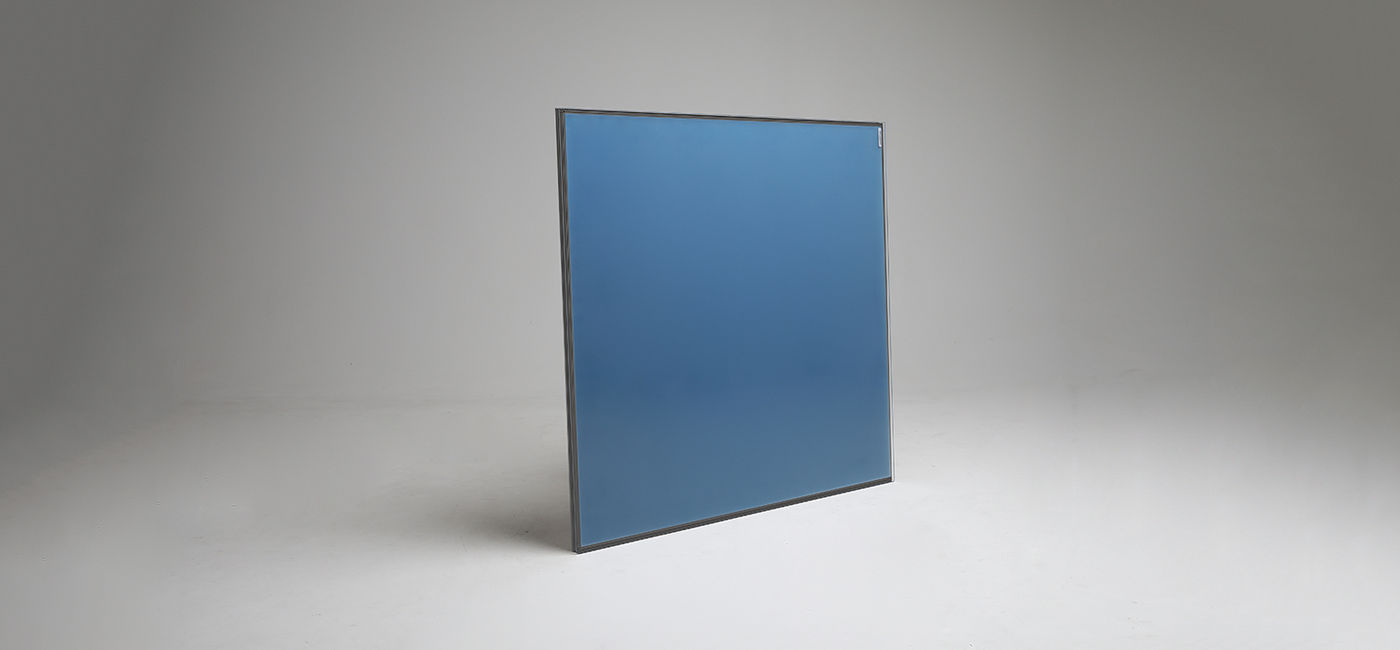

CSW-Color (Color Solar Wall)
CSW-Color is a next generation BIPV product that acts as a building material to answer renewable energy needs.
The product can be adapted to the requirements of the customer, such as offering various colors and shapes.
- The world’s first color BIPV Product with various colors
- A next-generation color solar exterior that can be used by penetrating sunlight to the internal through a patented special coating technology
- Increase the value of the building by implementing various colors
- Customer customization system
CSW double-layer structure
-
Dark Gray
- Model: CSW-DG
- Color: Dark Gray
- Size : 1,060 x 1,060 x 28 mm
- Pmax: 180Wp
-
Light Gray
- Model: CSW-LG
- Color: Light Gray
- Size : 1,060 x 1,060 x 28 mm
- Pmax: 160Wp
-
White
- Model: CSW-WH
- Color: White
- Size : 1,060 x 1,060 x 28 mm
- Pmax: 100Wp
-
Blue
- Model: CSW-BL
- Color: Blue
- Size : 1,060 x 1,060 x 28 mm
- Pmax: 158Wp
Next Generation BIPV
- Building exterior materials with solar cells and energy production functions
- Aesthetic improvement (non visible of internal solar cell color and shape)
- Ability to customize colors and power generation
- Layer to block moisture and foreign substances from entering
Quality
- Strong durability, insulation, and fire resistance
- Reduction in building maintenance fees
Design Improvement
- Offering various of colors
- The importance of the aesthetic of exterior of buildings due to market characteristics
- Use as design element to increase the value of the building as an environmentally friendly building material
- Strength to maintain the original design of a building
Energy Generation
- Installed at various locations on the building such as curtain wall, roof, and on the outside
- Can be installed on the newly-built buildings and existing buildings
